| Attribute | Specification |
| Shipping SKU |
A-PUCK-0003-V2-01 |
| Shipping EAN |
6009710928271 |
| Shipping HS Code |
8529.10.69 (EU) / 8517.71.0000 (USA) |
| Shipping Unit Weight |
0.65kg (1.43lbs) |
| Shipping Unit Dimensions |
150 x 150 x 127 mm |
| Shipping Masterbox Weight |
18.25kg (40.23lbs) |
| Shipping Masterbox Dimensions |
520 x 495 x 400 mm |
| Shipping Country / Region |
CN |
Need assistance? Contact us at customercare@intetoconnect.co.za or info@intetoconnect.co.za

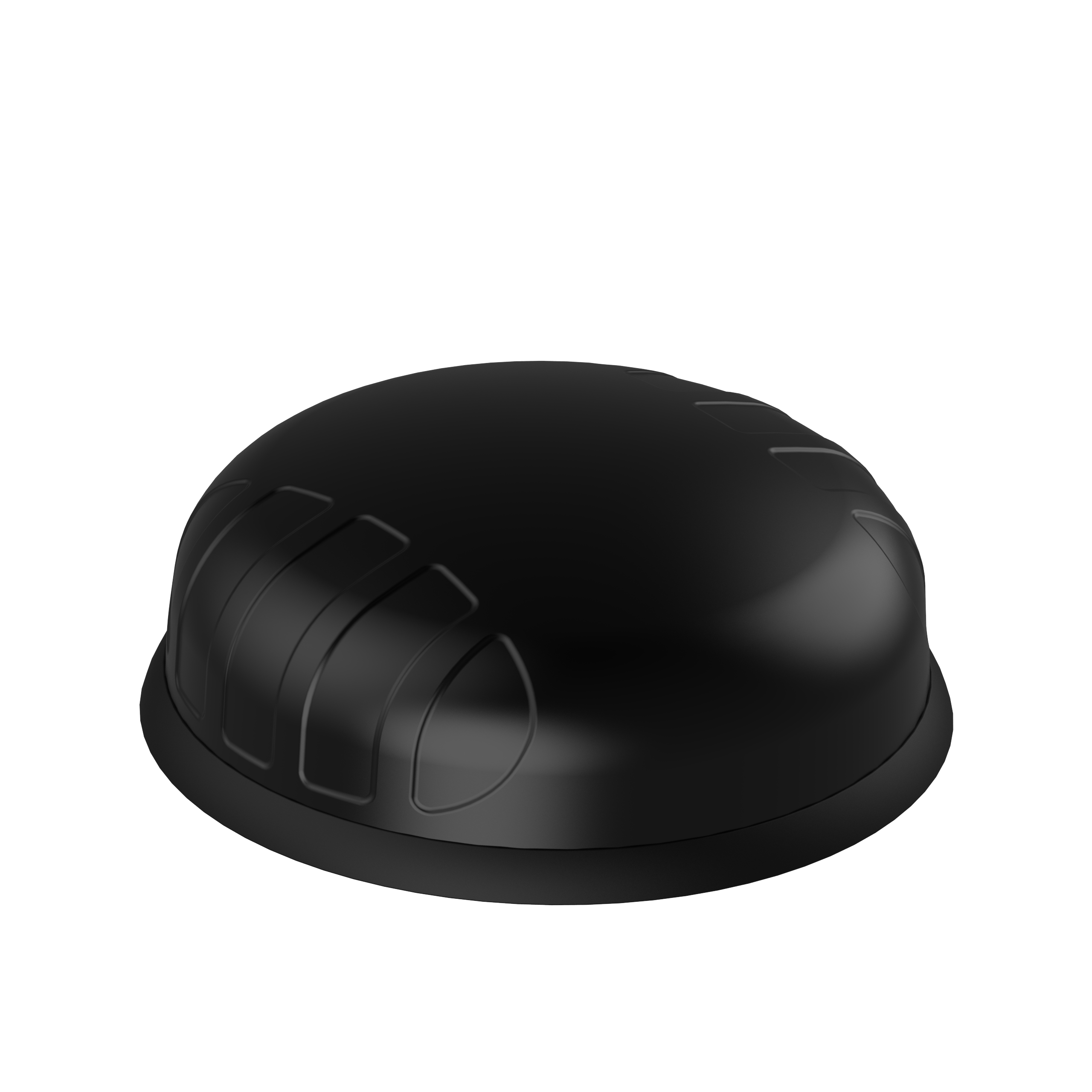

Poynting’s PUCK range introduces a small-profile, high-performance antenna designed for IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming applications. The PUCK-3 is a 3-in-1 antenna system within a single enclosure, providing reliable and future-proof connectivity for 5G, LTE, Wi-Fi, and GPS applications.
Wideband Cellular Coverage: Features a SISO Cellular antenna covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
Dual-Band SISO Wi-Fi Connectivity: Supports 2.4 GHz, 5 GHz, and 6 GHz bands, compatible with 802.11n, 802.11ac/ax/be standards.
High-Precision GPS/GLONASS Antenna: Active GPS system ensures accurate positioning, operational at temperatures as low as -40ºC.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
The PUCK-3 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G, LTE, Wi-Fi, and GPS connectivity.
| Product Card Band Range | 617 – 6000 MHz |
|---|---|
| Product Filter MHZ | 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-4200MHz, 5000-6000MHz, 6000-7200MHz, 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz |
| Product Filter 5G | n1, n100, n101, n106, n12, n13, n14, n18, n2, n20, n25, n256, n26, n28, n29, n3, n30, n34, n38, n39, n40, n41, n46, n47, n48, n5, n51, n53, n65, n66, n67, n7, n71, n74, n75, n76, n77, n78, n8, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98 |
| Product Filter LTE/4G | B1, B10, B103, B106, B12, B13, B14, B17, B18, B19, B2, B20, B25, B26, B27, B28, B29, B3, B30, B33, B34, B35, B36, B37, B38, B39, B4, B40, B41, B44, B5, B53, B65, B66, B67, B68, B69, B7, B71, B74, B8, B85, B9 |
| Wi-Fi Standard | Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Technology / Type | Omni-Directional |

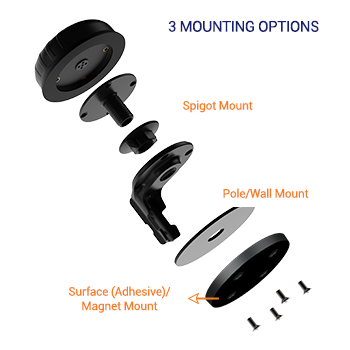

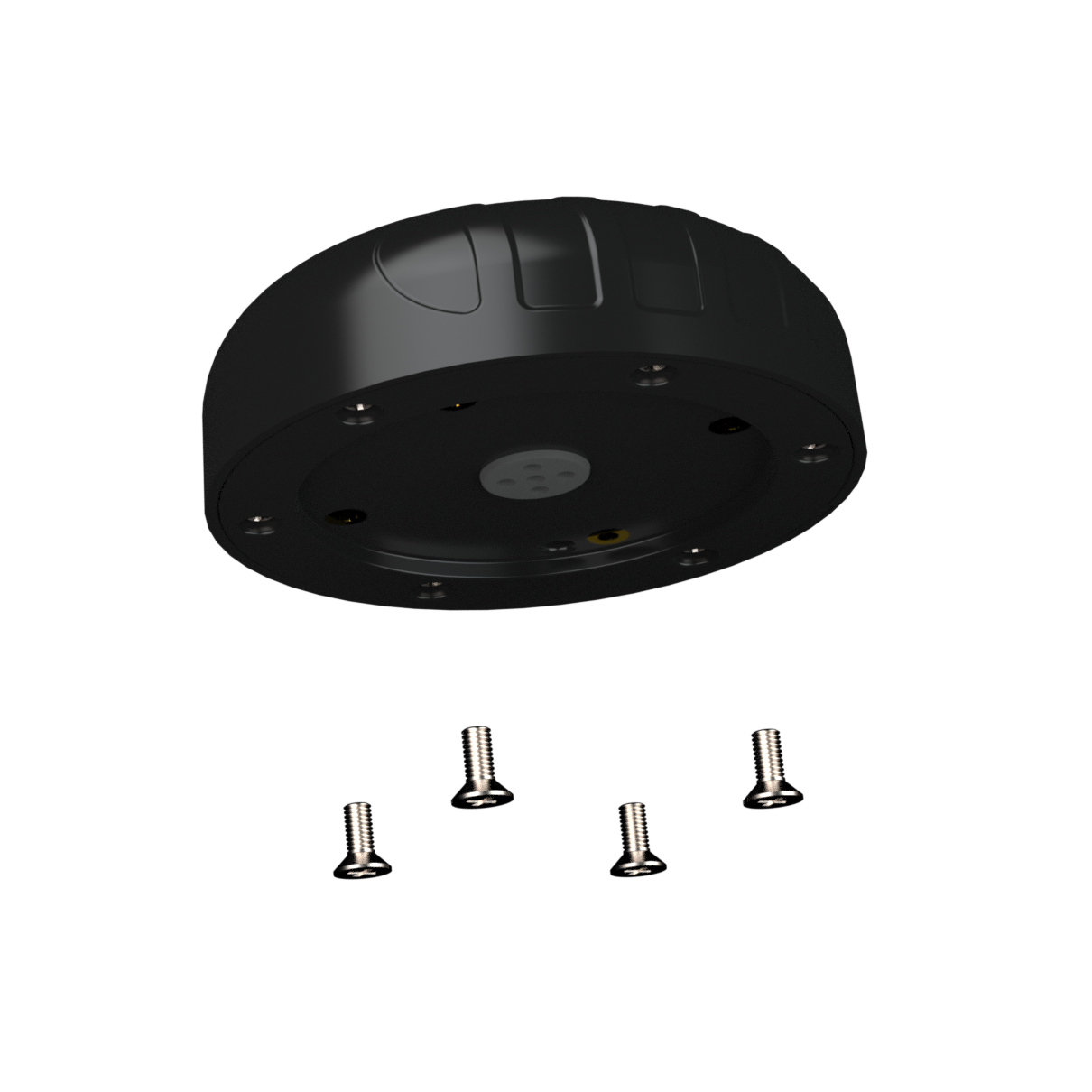

| Mounting Type | Magnetic Mount, Pole Mount, Spigot Mount, Surface/Desk Mount, Wall Mount |
| Connectors | SMA |
| MIMO | SISO |
| Polarisation | Linear Polarised |
| Environmental | IP69K |
| Gain | 5.5dBi(LTE), 4.5dBi(Wi-Fi), 21dBi(GPS) |
| lteports | 1 |
| wifiports | 1 |
| gpsports | 1 |
| Coax Cable Type | RTK-031 |
| Product Variant Colour | Black |
| Coax Cable Length | 2m |
